At speed, a car becomes an airplane flying close to the ground. Aerodynamics is the science of making it an upside-down airplane, using air pressure differences to push the car down onto the road rather than lift it into the air. In this guide, we’ll explore the fundamentals of automotive aerodynamics and how they improve vehicle performance.
Key Principles
Understanding automotive aerodynamics requires grasping several fundamental principles:
Bernoulli’s Principle
This principle states that faster moving air has lower pressure. This concept is fundamental to how wings work:
- Air traveling over the top of a wing moves faster than air traveling underneath
- The faster-moving air above creates lower pressure
- The higher pressure below pushes the wing upward
In automotive applications, we use inverted wings to create downforce instead of lift.

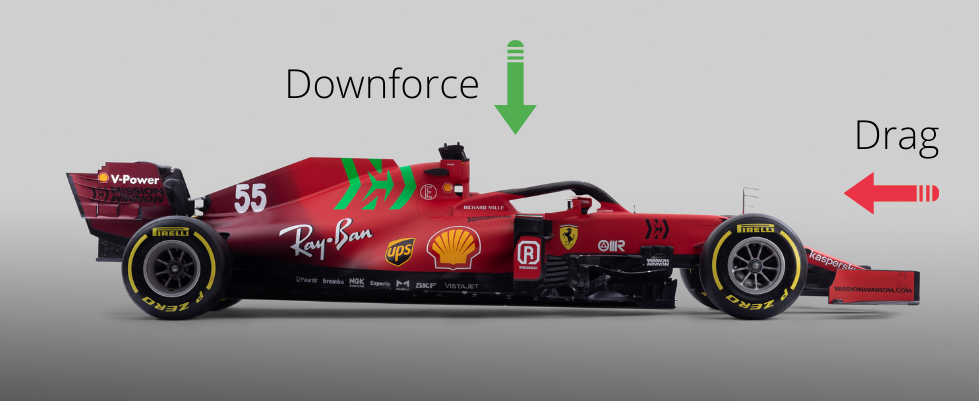

Downforce vs. Drag
Two primary aerodynamic forces affect vehicle performance:
- Downforce: The desirable vertical aerodynamic force that presses the car down onto the road, increasing grip
- Drag: The undesirable horizontal resistance that opposes forward motion and reduces top speed
The goal is to maximize the Lift-to-Drag ratio (L/D), often expressed as the ratio of downforce to drag. The lift equation shows how downforce increases with the square of velocity:
L = ½ ρ v² S CL
Where:
- L = Lift (or Downforce) force
- ρ = Air density
- v = Velocity
- S = Wing surface area
- CL = Coefficient of lift
This relationship shows why aerodynamic effects become dramatically more important at higher speeds.
Aerodynamic Components
Several components work together to optimize a vehicle’s aerodynamic performance:
Front Splitter & Air Dam
These components work together to manage airflow at the front of the vehicle:
- Prevent high-pressure air from going under the car
- Create a low-pressure zone under the vehicle
- Generate downforce at the front of the car
- Help balance the car’s aerodynamic forces front-to-rear
Rear Wing
A rear wing functions like an inverted airplane wing to push the rear of the car down:
- Angle of Attack (AoA) determines the amount of downforce generated
- Higher angles create more downforce but also more drag
- Adjustable wings allow tuning for specific conditions
Proper wing placement is critical:
- Must be in clean, undisturbed airflow
- Height above the rear deck affects effectiveness
- End plates help contain airflow and increase efficiency
Underbody & Diffuser
The underbody is often more important than visible components:
- A flat underbody accelerates air flowing underneath the car
- A diffuser helps that air expand and slow down at the rear
- This creates a powerful low-pressure suction effect
Diffuser design is critical for effectiveness:
- Gradual expansion angle prevents airflow separation
- Internal strakes help manage airflow
- Integration with the rear bumper is essential
Conclusion
Functional aerodynamics provide a grip advantage that doesn’t rely on tires, becoming more effective as the car goes faster. Unlike mechanical grip improvements that have diminishing returns, aerodynamic grip increases with the square of velocity.
For performance enthusiasts, understanding aerodynamics allows informed decisions about modifications. Whether adding a simple rear wing or comprehensive aero package, the principles remain the same. Proper aerodynamic development can provide significant performance gains without adding weight or complexity to the powertrain.
