Alignment is the science of optimizing how the tire’s contact patch meets the road. Proper suspension geometry settings are critical for handling, tire wear, and overall vehicle performance. In this article, we’ll explore the three fundamental alignment parameters: camber, caster, and toe.
Camber: The Cornering Angle
Camber refers to the inward or outward tilt of the top of the tire when viewed from the front of the vehicle.
Definition

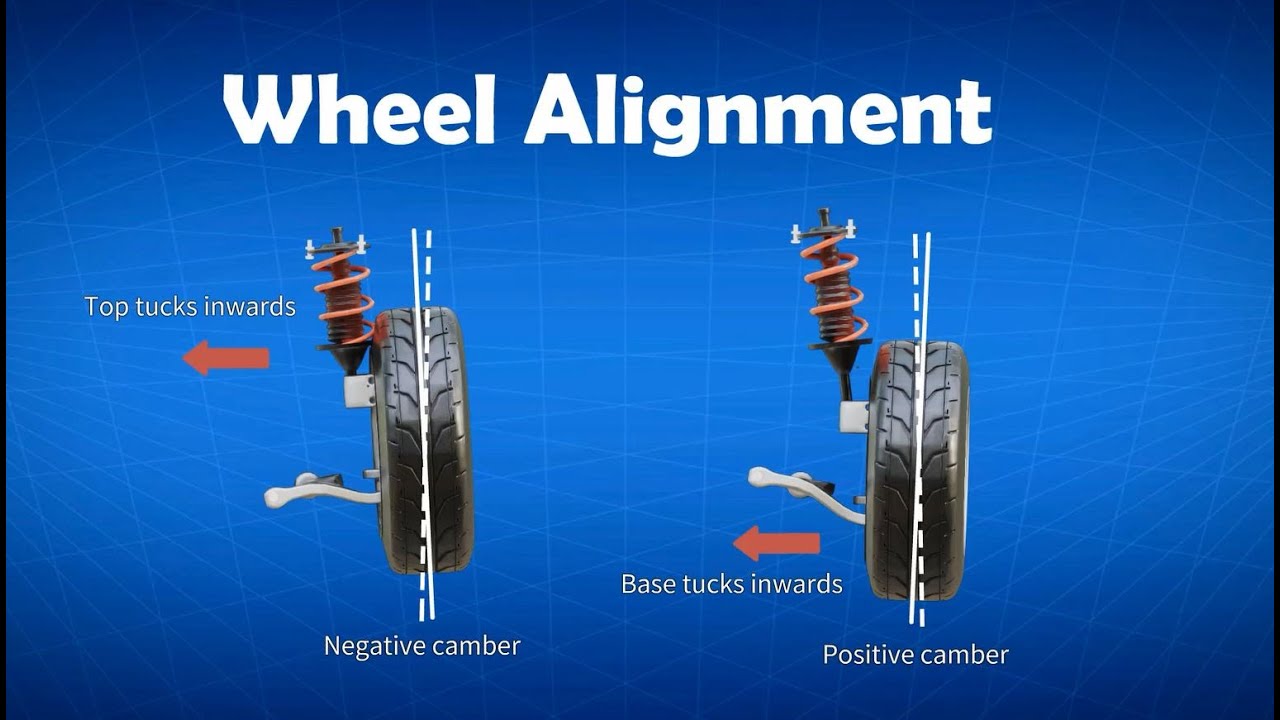

When the top of the tire tilts inward toward the center of the vehicle, it’s called negative camber. When the top tilts outward, it’s called positive camber. A perfectly vertical tire has zero camber.
Negative Camber
Negative camber is commonly used in performance applications for several reasons:
- Keeps the tire’s contact patch flat on the road during cornering when body roll occurs
- Maximizes grip during lateral acceleration
- Compensates for suspension geometry changes under load
Effects
While negative camber improves cornering grip, it comes with trade-offs:
- Too much negative camber reduces straight-line braking performance
- Increases inner tire wear during normal driving
- Can reduce tire life if set excessively
Caster: The Stability Angle
Caster refers to the forward or backward tilt of the steering axis when viewed from the side of the vehicle.
Definition
When the steering axis tilts backward (top toward the rear of the vehicle), it’s called positive caster. When it tilts forward, it’s called negative caster. Most performance alignments use positive caster.
Positive Caster
Positive caster creates several beneficial effects:
- Self-Centering Effect: Like a shopping cart wheel, positive caster creates a self-centering force that helps the steering wheel return to center after a turn
- High-Speed Stability: Improves straight-line stability at highway speeds
- Camber Gain: Creates beneficial camber changes when turning – the outside wheel gains negative camber during cornering
Effects
While positive caster offers many advantages, it also has some drawbacks:
- Increases steering effort, which may be objectionable on street cars
- Can cause tramlining (following road imperfections) on rough roads
- May increase wear on front suspension components if set excessively
Toe: The Directional Angle
Toe refers to the direction the front of the tires are pointing relative to each other when viewed from above the vehicle.
Definition
When the front of the tires point toward each other, it’s called toe-in. When they point away from each other, it’s called toe-out. Perfectly parallel tires have zero toe.
Toe-in vs. Toe-out
Each toe setting offers distinct characteristics:
- Toe-in: Enhances straight-line stability but can reduce turn-in response. Commonly used on street vehicles for better high-speed stability.
- Toe-out: Improves turn-in response for quicker steering response but reduces straight-line stability. Often used in racing applications.
Conclusion
A performance alignment is a compromise between these three settings to match the vehicle and driver’s needs. Street cars typically use a combination that prioritizes tire wear and straight-line stability, while track-focused vehicles optimize for cornering grip and responsiveness.
Understanding these fundamental concepts allows drivers to make informed decisions about their vehicle’s alignment settings. Whether you’re daily driving or hitting the track, proper suspension geometry is essential for optimal performance, safety, and tire life.
